Toggle Switches

Toggle Switches can be supplied in a range of options as detailed below

  • Single Pole, Single Throw (SPST) – The circuit is turned ‘ON’ and then ‘OFF’ with each actuation.
  • Double Pole, Single Throw (DPST) – Two independent circuits are turned ‘ON’ and then ‘OFF’ with each actuation.
  • Single Pole, Double Throw (SPDT) – The circuit is turned ‘ON’ and another turned ‘OFF’ with each actuation.
  • Double Pole, Double Throw (DPDT) – Two independent circuits are turned ‘ON’ and Two independent circuits are turned ‘OFF’ with each actuation.

Common Specification:

  • Mounting Bush with a 15/32″ 32 tpi thread (One Hexagon and One Knurled nut supplied)
  • Contact Rating 2 Amp 250V ac Resistive Load, Contact Gap 5mm
  • Contact Rating 10 Amp Max at 12V dc Resistive Load, Contact Gap 5mm
  • Switch Contacts – Silver Plated Brass, Switch Terminals – Silver Plated Phosphor Bronze
  • Snap Action (Quick make and Break)
  • Operating Temperature -25°C to +70°C
  • Double Insulation Resistance 50,000Megohms
  • Proof Voltage 2KV min.
  • Life 10,000 operations min at rated load
Contact Sales

To make an enquiry or place an order please contact sales

Additional options, for example additional nuts are available upon request

Some Standard Toggle Switches are available on Amazon

Single Pole, Single Throw (SPST)

Single Pole Single Throw Toggle

Single Pole, Single Throw Toggle Switch

See Datasheet below for ordering codes

Single Pole, Single Throw (SPST) Datasheet

Details and Options:

  • Type – Single Pole, Single Throw (SPST)
  • Wiring – Faston (Spade Terminal 6.3mm) or Solder Tags
  • Dolly – Short Pear (Nickel Plated or Brass) or Plastic (10mm, 13mm or Bat Handle)
  • Fixings – Hexagon and Knurled nut (one of each supplied as standard)
  • Accessory – ON/OFF Legend Plate
Please note: Plastic Dollies are always supplied with Nickel Bushes and nuts

Double Pole, Single Throw (DPST)

Double pole Single Throw toggle

Double Pole, Single Throw Toggle Switch

See Datasheet below for ordering codes

Double Pole, Single Throw (DPST) Datasheet

Details and Options:

  • Type – Double Pole, Single Throw (DPST)
  • Wiring – Faston (Spade Terminal 6.3mm) or Solder Tags
  • Dolly – Short Pear (Nickel Plated or Brass) or Plastic (10mm, 13mm or Bat Handle)
  • Fixings – Hexagon and Knurled nut (one of each supplied as standard)
  • Accessory – ON/OFF Legend Plate
Please note: Plastic Dollies are always supplied with Nickel Bushes and nuts

Single Pole, Double Throw (SPDT)

Single pole double throw toggle

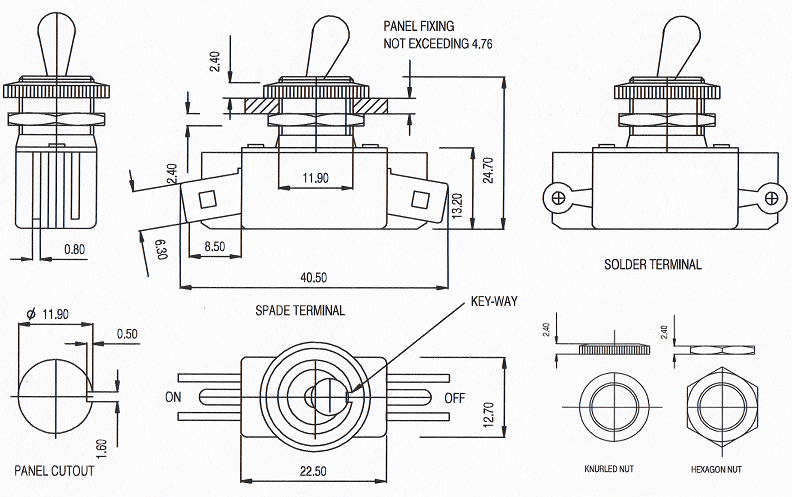

Single Pole, Double Throw Toggle Switch

See Datasheet below for ordering codes

Single Pole, Double Throw (SPDT) Datasheet

Details and Options:

  • Type – Single Pole, Double Throw (SPDT)
  • Wiring – Faston (Spade Terminal 6.3mm) or Solder Tags
  • Dolly – Short Pear (Nickel Plated or Brass) or Plastic (10mm, 13mm or Bat Handle)
  • Fixings – Hexagon and Knurled nut (one of each supplied as standard)
Please note: Plastic Dollies are always supplied with Nickel Bushes and nuts

Double Pole, Double Throw (DPDT)

Double pole double throw toggle switch

Double Pole, Double Throw Toggle Switch

See Datasheet below for ordering codes

Double Pole, Double Throw (DPDT) Datasheet

Details and Options:

  • Type – Double Pole, Double Throw (DPDT)
  • Wiring – Faston (Spade Terminal 6.3mm) or Solder Tags
  • Dolly – Short Pear (Nickel Plated or Brass) or Plastic (10mm, 13mm or Bat Handle)
  • Fixings – Hexagon and Knurled nut (one of each supplied as standard)
Please note: Plastic Dollies are always supplied with Nickel Bushes and nuts
